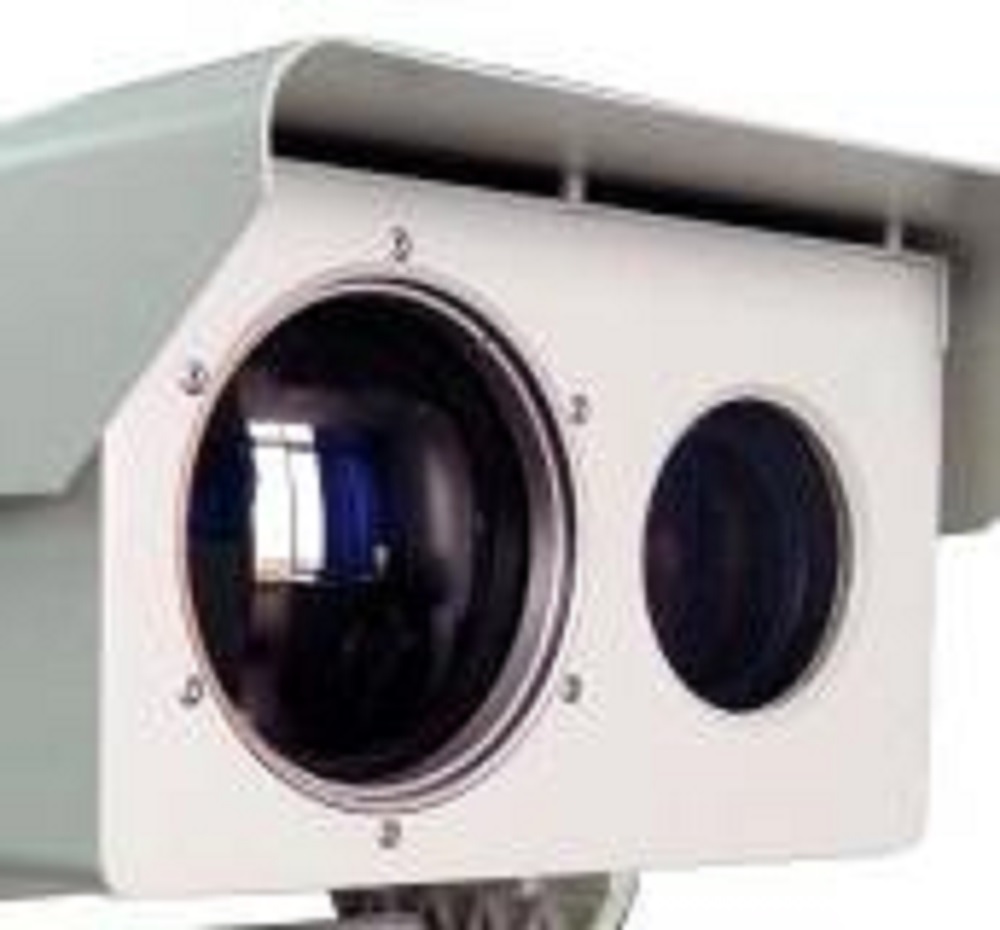

● Long range visible light camera and thermal imaging camera integrating design, realizing day and night monitoring
● Day&night mode, low illuminance, color to black camera
● Universal, variable speed pantilt, realizing all-around, no-blind-corner monitoring and high precision location
● Simple to operate, easy to use and maintain
● Integrated intelligent temperature controlling system, making sure electronic device inside the housing work normally 24/7
● Passive infrared thermal imaging, good concealment, not easy to be perceived
● Professionally designed housing, artistic, light, solid, high temperature resistant, anti-corrosion, water-proof, anti-acid rain
● Low power consumption, little heat generation, stable working performance
|
Level of protection IP66 Monitor Distance |
Visible light |
10000m |
||
|
Thermal camera |
object |
fire (1m×1m) |
fire (3m×3m) |
|
|
warning distance |
4400m |
10800m |
||
|
Alarm Detection |
Alarm condition |
The high temperature region occupies 2 x 2 pixels |
||
|
Alarm threshold value |
1~255 |
|||
|
Target scope |
2×2~ 640×512 pixels |
|||
|
Alarm object |
can set 1-16 alarm objects,Automatically displays hypertemperature targets |
|||
|
Alarm mode |
Video overlay alarm box / switch, alarm intuitive and easy to read |
|||
|
Information algorithm |
Optimized front-end fast processing algorithm, based on each frame analysis, alarm response 0.1S, no delay, no information loss |
|||
|
HD Camera |
Focal length |
12.5~750mm |
||
|
F value |
F3.8~F22.C |
|||
|
FOV |
0.6°~35° |
|||
|
Automatic diaphragm |
DC drive |
|||
|
Penetrating fog |
support |
|||
|
Auto focus |
support |
|||
|
Camera |
Sensor type |
1/1.8''Progressive Scan CMOS |
||
|
Color mode |
Integrated ICR dual filter day and night switching, day and night dual mode parameter settings |
|||
|
Shutter speed |
Auto/manual |
|||
|
Camera control |
AGC, AWB Supports manual and automatic round-the-clock mode conversion |
|||
|
Penetrating fog |
turn on/off (optinal) |
|||
|
Wide dynamic |
turn on/off (optinal) |
|||
|
Backlight compensation |
turn on/off and region is optinal |
|||
|
Area-of-interest |
turn on/off and region is optinal |
|||
|
Post-focus fine tuning |
Support, remote debugging |
|||
|
Digital Noise Reduction |
3D digital noise reduction |
|||
|
Coded format |
H.265/H.264/MJPEG |
|||
|
Video resolution |
1080p,Support three stream |
|||
|
Video bitrate |
32Kbps~16Mbps |
|||
|
Frame rate |
50Hz: 50fps (1920×1080,1280×960,1280×720); |
|||
|
25fps (1920×1080,1280×960,1280×720); |
||||
|
60Hz: 60fps (1920×1080,1280×960,1280×720); |
||||
|
30fps (1920×1080,1280×960,1280×720); |
||||
|
Subtitle overlay |
station logo, date, time |
|||
|
Image adjustment |
brightness, contrast, saturability etc. |
|||
|
Supporting protocol |
TCP/IP/ICMP/HTTP/HTTPS/FTP/DHCP/DNS/DDNS/ |
|||
|
RTP/RTSP/RTCP/PPPoE/NTP/UPnP/SMTP/SNMP/ |
||||
|
IGMP/802.1X/QoS/IPv6/Bonjour |
||||
|
Feature |
Support heartbeat, video cover, password protection, mirror function |
|||
|
Infrared Lens |
Focal length |
30~150mm,5x optical zoom |
||
|
FOV |
4.2°×3.3°~20.6°×16.5° |
|||
|
Camera control |
Electric zoom, electric focus, auto focus |
|||
|
Spatial resolution |
0.11~0.57mrad |
|||
|
Detector |
Detector type |
uncooled microbolometer focal plane array(VOx) |
||
|
Effective pixel |
640×512 |
|||
|
Spectrum range |
8~14μm |
|||
|
NETD |
≤50mk@F1.0,300k |
|||
|
Frame frequency |
25Hz |
|||
|
Nonuniformity correction |
Auto/manual/background correction |
|||
|
Image precess |
DDE |
|||
|
Video output |
PAL |
|||
|

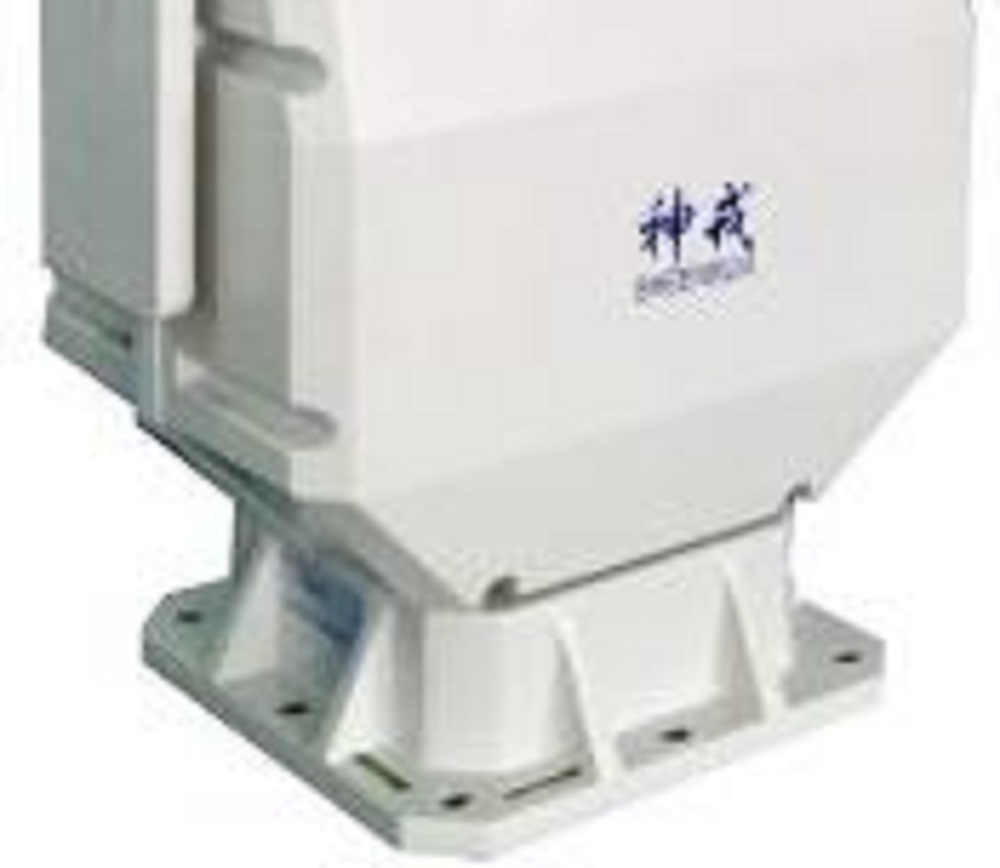

Photoelectric turntable |
Horizontal angle |
Horizontal 360 °, infinite continuous rotation |
||
|
Pitch angle |
-45°~+45° |
|||
|
Horizontal speed |
0.01°~80°/s |
|||
|
Pitch speed |
0.01°~60°/s |
|||
|
Preset position |
2048,Support lens zoom, focus preset position and function preset position |
|||
|
Preset accuracy |
±0.05° |
|||
|
Auxiliary switch |
2 groups |
|||
|
Automatic cruise |
2, each can be set to 64 cruise points |
|||
|
Automatic scanning |
1 line scan, 1 apple peel scan |
|||
|
Protocol |
Pelco-D、Pelco-P (optional) |
|||
|
protocol rate |
2400/4800/9600/19200 bps (optional) |
|||
|
Anti-thunder |
4000V,video signal 2000V |
|||
|
Interface |
Power interface |
DC30V |
||
|
Network interface |
1×10Base-T/100Base-TX,RJ45 interface |
|||
|
Video control interface |
RS422,BNC video output |
|||
|
Environmental Indicators |
Operation temp |
-25℃~+55℃ |
||
|
Storage temp |
-40℃~+65℃ |
|||
|
International protection |
IP66 |
|||
|
Anti-salt spray |
GB/T2423.17-2008 |
|||
|
Power |
Power supply |
DC30V,AC90~305V DC30V/10A Wide waterproof power supply |
||
|
Power consumption |
≤180W |
|||
|
Physical Characteristics |
Total Weight |
≤80kg |
||
|
size |
500mm×500mm×795mm(L×W×H) |
|||
|
Install |
Outdoor base installation |
|||
